SSR120C-10S

https://www.umsgy.com/web/image/product.template/90/image_1920?unique=17f02bf

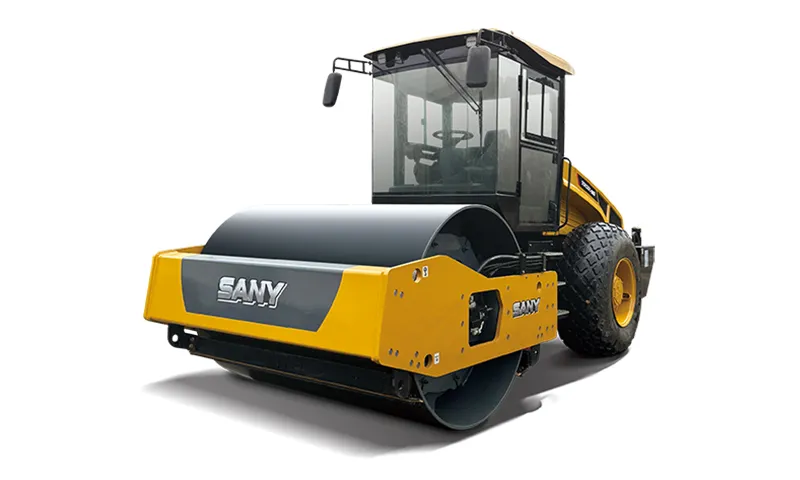

Single Drum Roller

Centrifugal Force

280/216 kN

Rated Power

93 kW

Operating Weight

12.4 T

0.00 $ 0.0 GYD 0.00 $

1.00 $

Contact Us to find more details

This combination does not exist.


Features

Extended Life Time
  • The use of water wheel type lubrication on the vibratory bearing extends the bearing life up to 5,000 hours.
  • The engine air filter is raised and the air is filtered twice to protect the engine.
  • The hydraulic system contains three stage filtration.
Operator Comfort
  • Cab mounted on vibration damping mounts
  • Cab temperature control
  • Operator control forces have been reduced
Safety Features
  • Rounded bumpers front and rear
  • The large rear glass and sloped hood for greater visibility
High Efficiency

10% greater excitation force than other products in the same category resulting in 16.7% greater production.

Specs



40/32 Hz

Vibration Frequency


2130 mm (6.9')

Drum Width


1.8/0.9mm(0.07/0.03")

Nominal Amplitude


280/216 kN

Centrifugal Force


0~12 km/h

Travel Speed


93 kW

 Rated Power


12400 kg

Operating Weight


5450 kg

Weight at Rear Axle


6950 kg

Weight at Drum
