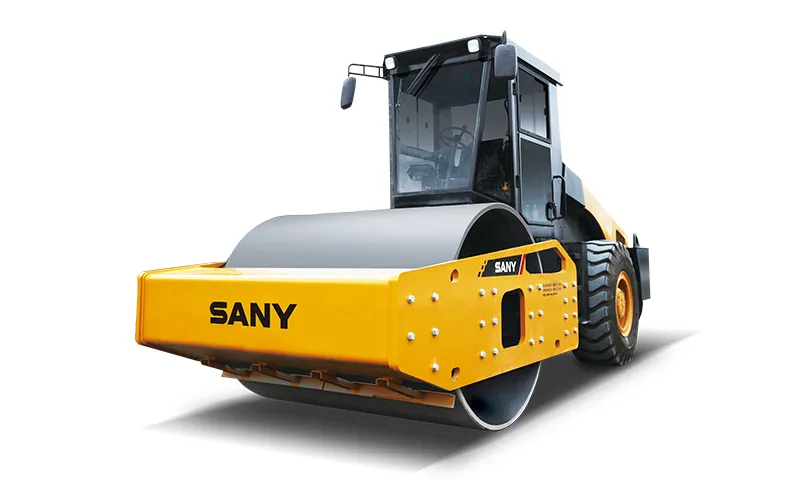

SSR140AC-8
Single Drum Roller

Centrifugal Force
290/200 kN
                    Rated Power
132 kW


Operating Weight
14 T
Features
Extended Life Time

                                - The use of water wheel type lubrication on the vibratory bearing extends the bearing life up to 5,000 hours.
 - The engine air filter is raised and the air is filtered twice to protect the engine.
 -
The hydraulic system contains three stage filtration.

Operator Comfort
- Cab mounted on vibration damping mounts
 - Cab temperature control
 -
Operator control forces have been reduced

Safety Features
- Rounded bumpers front and rear
 -
The large rear glass and sloped hood for greater visibility

High Efficiency
10% greater excitation force than other products in the same category resulting in 16.7% greater production.
                Specs

33/36 Hz




Vibration Frequency


2130 mm (6.9')



Drum Width


1.9/1.0mm(0.07/0.04")



Nominal Amplitude

290/200 kN



Centrifugal Force


0~12 / 0~5.5 km/h




Travel Speed


132 kW



Rated Power
                            14000 kg




Operating Weight

                            7000 kg




Weight at Rear Axle

                            7000 kg




Weight at Drum
